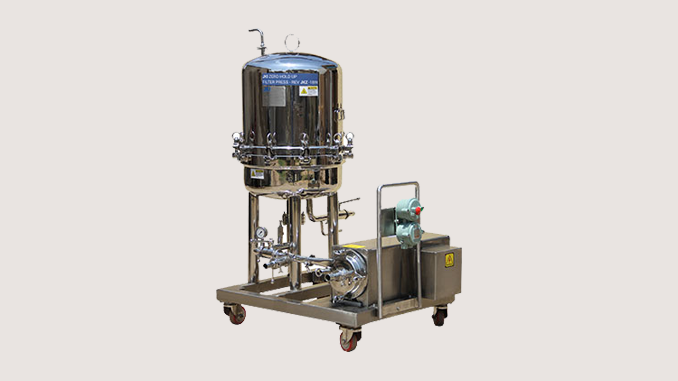

ZERO HOLD UP FILTER PRESS

The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquids spreads out equally on each plate fitted with filter media.

Solids remain on filter media and clear. filtrate flows through precisely made holes on sides of plates and collects in the shell, which then comes out through the outlet. In this process, solids are evenly distributed on each plate. The cake is then cleaned from the filter material and used again for filtration process.

  • Single pass filtration with no solid bypass
  • Full batch recovery, no separate scavenging system needed.
  • Proper sealing which allows the filtration of volatile, toxic and inflammable products.
  • Plate pack arrangement ensures : Any type of filtering media singularly or in combination, can be used to achieve required micron efficiency. Easy removal and cleaning of the Cartridge Assembly.
  • Closed System ensures : Filtration of toxic, hazardous, explosive materials.Efficiently cleaned and sterilized.
  • Central feeding ensures : No solid inside the vessel, complete recovery of liquids.Cake solids can be maximum dried with N2 Complete cake retains over the plate.Uniform filter-aid bed can be formed.Reduces the cost of expensive solvents.

Technical Specification

Types Diameter of Plate No. of Plates Filtering Area M2 Cake Holding Capacity Ltrs. Capacity Ltr / Hr
JKZ86 8" 6 0.198 4.50 400
JKZ88 8" 8 0.254  5.78 500
JKZ148 14" 8 0.756  27.00 1500
JKZ1410 14" 10 0.924 35.00 1800
JKZ188 18"D 8 1.270  51.00 2500
JKZ1815 18"S 15 2.270  44.00 4500
JKZ1812 18"D 12 1.840 78.00 3700
JKZ1823 18"S 23 3.400 65.00 6800
JKZ2412 24"D 12 3.430 148.00 6700
JKZ2423 24"S 23 6.336 120.00 12600
JKZ337 33"D 7 4.000 175.00 8000
JKZ3314 33"S 14 7.500 210.00 15000

The values of "Flow-Rates" mentioned in technical specifications have been estimated for the following operating parameters :
